Big Tex 14GX
Call (903) 572-1106 For More Information
Heavy Duty Tandem Axle Extra Wide Gooseneck Dump Trailer
For the ultimate in strength and durability, look to the 14GX Heavy Duty Tandem Axle Extra Wide Gooseneck Dump Trailer - from its robust and long-lasting structure and frame to heavy-duty dump box with 10-Gauge steel floors. Packed to the brim with the most complete box unit in the industry, the 14GX is designed to handle heavy-duty and extra wide loads with superior stability and efficiency.
(903) 572-1106- Overview
- Features/Specifications
- Standard/Optional Equipment
Overview
Big Tex 14GX Heavy Duty Tandem Axle Extra Wide Gooseneck Dump Trailer
For the ultimate in strength and durability, look to the 14GX Heavy Duty Tandem Axle Extra Wide Gooseneck Dump Trailer - from its robust and long-lasting structure and frame to heavy-duty dump box with 10-Gauge steel floors. Packed to the brim with the most complete box unit in the industry, the 14GX is designed to handle heavy-duty and extra wide loads with superior stability and efficiency.
| SIZE | WEIGHT | DESCRIPTION |
|---|---|---|
| 14' | 4,640# | 83" x 14' Heavy Duty Tandem Axle Gooseneck Dump |
| 16' | 5,000# | 83" x 16' Heavy Duty Tandem Axle Gooseneck Dump |
Features/Specifications
Features
| AXLE | (2) 7,000# Quick Lubricating w/Elec. Brakes |
|---|---|
| JACK | Dual 12,000# Drop Leg - Side Wind |
| NECK | 10" I-Beam |
| TIRE | ST235/80 R-16 Load Range E |
| FLOOR | 10 Gauge Smooth Steel |
| WHEEL | 16" x 6"; HD Black Mod 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| COUPLER | 2-5/16" Adjustable Pin (25K) |
| FENDERS | 9" x 72" 14 Ga. Diamond Plate Souble Square Broke |
| G.V.W.R. | 15,900# |
| ELEC. PLUG | 7-Way RV |
|---|---|
| HITCH TYPE | Gooseneck |
| MAIN FRAME | 8" I-Beam, 10# |
| SUSPENSION | Multi-Leaf Spring w/Equalizer |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 3/8" Grd. 70 w/Safety Latch Hook (2 each) |
| DUMP BODY SIDES | 24" Tall Sides (10 Gauge) |
| DUMP BODY TOP RAIL | 3" x 2" Rectangular Tubing |
| G.A.W.R. (Ea. Axle) | 7,000# |
| DUMP BODY CROSSMEMBERS | 3" Channel, 16" Centers |
Specifications
Big Tex 14GX Heavy Duty Tandem Axle Extra Wide Gooseneck Dump Trailer
| Model | Description |
|---|---|
| 14GX-14 | 83" x 14' Heavy Duty Tandem Axle Gooseneck Dump |
| 14GX-16 | 83" x 16' Heavy Duty Tandem Axle Gooseneck Dump |

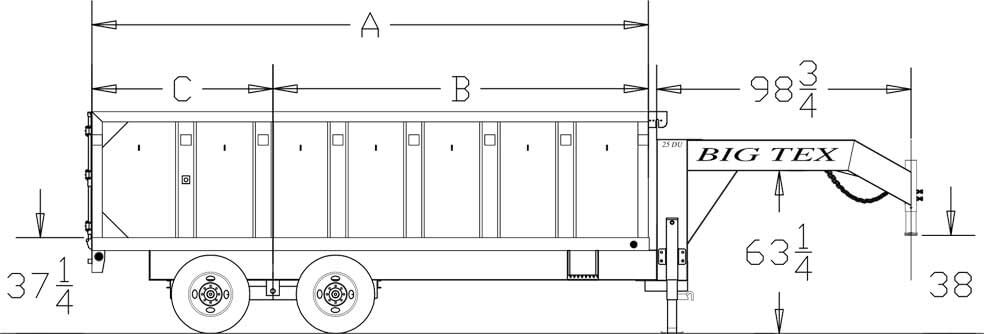

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 14' | |||
| 16' |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 14' | 4,640# | 11,260# | 7 Cubic Yards |
| 16' | 5,000# | 10,900# | 8 Cubic Yards |
Standard/Optional Equipment
Standard Equipment
- Round Adjustable Pin 2-5/16" Gooseneck Coupler (25K)
- Dual 12,000# Drop Leg (Side Wind)
- Lockable Pump & Battery Box Mounted Between Jacks
- 24" Tall, 12 Gauge Sides w/Formed Channel Supports
- 10 Gauge Steel Floor and Sides
- Fully Formed Tarp shroud on Front
- Crank Style Roll Tarp - Standard Equipped
- Tarp Rod Included to Secure Tarp on Rear
- J-Hooks on Sides & Rear for Tarp Control
- Stakepockets Along Sides
- Self Contained Electric/Hydraulic Scissor Hoist
- Power Up/Power Down Hydraulic Pump
- 12V Interstate Deep Cycle Battery
- 110V On-Board Battery Charger (5 Amp)
- Premium Brand Axles
- Cambered Axles w/Quick Lubricating Hubs
- Forward Self-Adjusting Electric Brakes on All Hubs
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Complete Break-A-Way System
- Zip Breakaway Cable
- Diamond Plate Fenders
- 2" square Tubing Top Rail on Dump Bed
- Combo Gate (Barn Doors & Spreader Gate)
- (4) 1/2" D-Rings Inside Bed to Secure Equipment
- Spare Tire Mount
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| AXLES | Drop Axles (Lowers Deck Height to 24" from Ground) |
| BODY | 24" Expanded Metal Side Extensions |
| BODY | 3 Solid Sheet Metal Sides |
| BODY | 4 Solid Sheet Metal Sides |
| BODY | Removable Deck on the Neck- Bolt On (8 W x 6 L) |
| BODY | Upgrade Floor to 7-Gauge Steel |
| JACK | Dual 2-Speed Landing Gear |
| JACKS | Dual Elec/Hyd 12,000# Jacks by Stillwell |
| POWER | 5 Watt Solar Charger |
| POWER | Wireless Remote |
| RAMPS | 6.5 Slide In Ramp Package |
| TIRE/WHEEL | Spare Tire (ST235/80 R-16 LR-E) |
| TIRE/WHEEL | Spare Tire Upgrade (ST235/85 R-16 LR-G) |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G) |
