Big Tex 30ES
Call (903) 572-1106 For More Information
Economy Single Axle Utility Trailer
Deal with a lot of different types of tasks around the home? Then the 30ES Economy Single Axle Utility Trailer is for you. An affordable single axle trailer thats all about versatility, the 30ES features a heavy-duty frame with a square tubing top rail for long-lasting durability. Plus, you can choose from treated pine or fir floors, so you get exactly what you need. Perfect for hauling ATVs, lawn equipment, and other light loads, its a cost-effective, jack-of-all-trades trailer that gets the job done.
(903) 572-1106- Overview
- Features/Specifications
- Standard/Optional Equipment
Overview

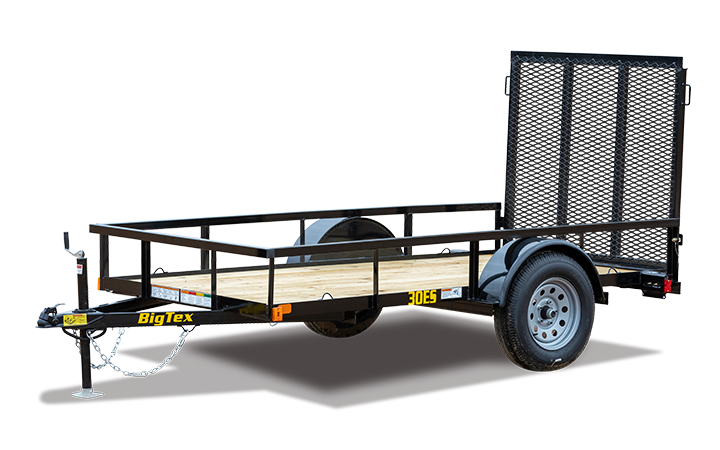

Big Tex 30ES Economy Single Axle Utility Trailer
Deal with a lot of different types of tasks around the home? Then the 30ES Economy Single Axle Utility Trailer is for you. An affordable single axle trailer thats all about versatility, the 30ES features a heavy-duty frame with a square tubing top rail for long-lasting durability. Plus, you can choose from treated pine or fir floors, so you get exactly what you need. Perfect for hauling ATVs, lawn equipment, and other light loads, its a cost-effective, jack-of-all-trades trailer that gets the job done.
| SIZE | WEIGHT | DESCRIPTION |
|---|---|---|
| 8' | 663# | 60" x 08' Economy Single Axle Utility Trailer |
| 10' | 723# | 60" x 10' Economy Single Axle Utility Trailer |
Features/Specifications
Features
| AXLE | 3,500# Quick Lubricating Hub Axle w/ Brake Flanges |
|---|---|
| JACK | 2,000# Top Wind |
| TIRE | ST205/75D-15 Load Range C |
| FLOOR | 2" Treated Pine or Douglas Fir* |
| FRAME | 3" x 2" x 3/16" Angle |
| WHEEL | 15" x 5; Silver Mod, 5 on 5 Bolt Pattern |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| LIGHTS | D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | 3" Channel |
| COUPLER | 2" A-Frame |
| FENDERS | 9" x 32" Rolled Formed w/ Back |
| G.V.W.R. | 2,995# |
|---|---|
| TOP RAIL | 2" x 2" Square Tubing |
| UPRIGHTS | 1-1/2" x 1-1/2" Angle |
| ELEC. PLUG | 4-Way Flat w/Loom |
| HITCH TYPE | Bumper Pull |
| SUSPENSION | Multi-Leaf Spring |
| CROSSMEMBERS | 3" x 2" x 3/16" Angle |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| SAFETY CHAINS | 1/4" Grd. 30 w/Safety Latch Hook (2 ea) |
| G.A.W.R. (Ea. Axle) | 2,995# |
Specifications
Big Tex 30ES Economy Single Axle Utility Trailer
| Model | Description |
|---|---|
| 30ES-08 | 60" x 08' Economy Single Axle Utility Trailer |
| 30ES-10 | 60" x 10' Economy Single Axle Utility Trailer |

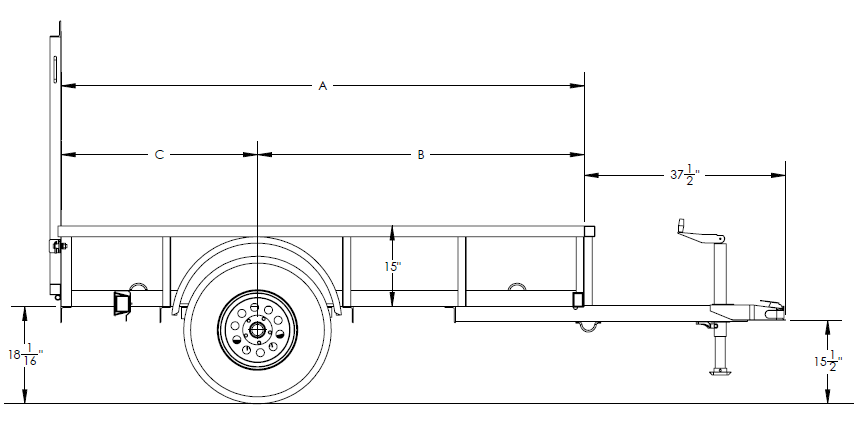

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 8' | 97-1/2" | 61" | 36-1/2" |
| 10' | 121-1/2" | 73" | 48-1/2" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 8' | 663# | 2,332# | N/A |
| 10' | 723# | 2,272# | N/A |
Standard/Optional Equipment
Standard Equipment
- (4) Tie Down Loops Inside Bed
- Quick Lubricating Hubs
- Premium Brand Axle
- Durable Tubing Top Rail
- Protected Wiring
- Brake Flanges on Axle for Easy Brake Addition
- Removable Sand Foot on Jack
- A-Frame Channel Tongue
Optional Equipment
| Category | Description |
|---|---|
| RAMPS | 4 Tall Rear Ramgate |
| TIRE/WHEEL | Spare Tire & Wheel (ST205/75D-15 LR-C) *No Spare Mount Available |
